graphical LCD 128*64, with backlight

<] [>


Code LCD-19
Description graphical LCD 128*64, with backlight
Price
Documentation LCD 128*64 BL (pdf) S6B0107 (pdf) S6B0108 (pdf)
Availability in stock
Add to order
Currently in shopping cart

This is a standard 128 by 64 pixels graphical LCD display, S6B0107/S6B0107 controller (= KS0107B/KS0108B), with backlight. Backlight: 120 mA at 5 Volt.

The pinout is not as found on the majority of graphical LCDs, do check the datasheet.

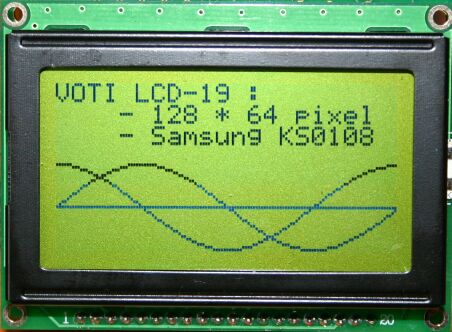

A LCD-19 test shows a simple test circuit, with Proton PIC Basic source and hex.

A simple oscilloscope using this display can be found here.
